LC-B Series 1226 High-speed ​​water-based Printing And Die-cutting Machine

Machine Configuration and Technical Specifications

Overall Performance

1. The machine integrates the paper feeding unit, printing unit, and slotting unit. It can complete printing, creasing, slotting, cutting, and stacking for three- or five-layer corrugated paperboard in a single pass.
2. The transmission system uses a helical gear set for smooth, quiet operation and increased strength. All transmission shafts are made of 20CrMnTi alloy steel, precision-ground after carburizing and quenching. The entire structure is sealed and force-lubricated, ensuring long service life and high accuracy.
3. Each unit features an electric separation alarm system to ensure operational safety.
4. Each unit is pneumatically locked and equipped with a fixed mechanism for stable positioning.
5. All motors have automatic zero-return systems for alignment and speed stability.
6. The printing and slotting units are equipped with PLC and human-machine interface (HMI) for automatic control.
7. Bearings adopt NSK or other well-known brands to ensure durability and precision.
8. Equipped with adjustable feeding system to accommodate paper thickness variations.
9. The entire line is built with precision machining and rigorous quality testing to ensure accuracy and reliability.

Computer Control System

1. The paper feeding, printing, and slotting units all use a PLC + HMI operation interface.
2. Memory-zero function: automatically resets to zero after completion or reboot.
3. One-key registration and plate position memory allow fast and precise setup.

Main Technical Data

Model: GYKM1227

• Max Paper Width: 3100 mm
• Design Speed: 200 sheets/min
• Economic Speed: 0–180 sheets/min
• Max Paper Size: 2700 × 1200 mm
• Max Printing Area: 2700 × 1200 mm
• Feed Roller Diameter: 600 × 300 mm
• Slotting Knife Diameter: 260 × 80 × 260 × 80 mm
• Max Slot Depth: 300 mm
• Plate Thickness: 4.7–7.2 mm
• Power: Main Motor 11 kW, Total Power ≈ 40 kW
• Printing Plate Thickness Adjustment: 50 mm
• Machine phase adjustment: full PLC control.

Paper Feeding Section

1. Equipped with electric unit-separation system and alarm to ensure worker safety.
2. Pneumatic locks between units ensure secure attachment and quick operation.
3. Automatic friction clutch system prevents misoperation.
4. Front edge feeding system with non-crushing feeding rollers.
5. Four independent feeding rollers enable accurate and stable paper feeding.
6. Suitable for various paper grades and thicknesses.

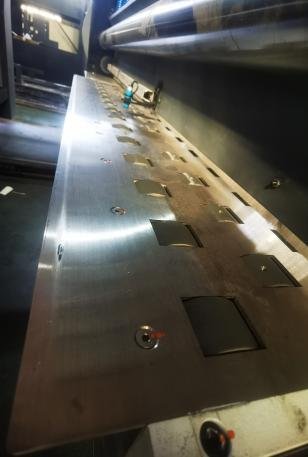

7. Frequency-controlled fan ensures proper vacuum adjustment.
8. Adjustable paper side guides and position memory functions.
9. Automatic counting and production tracking via PLC touchscreen interface.
10. Dust removal system with dual suction fans for improved printing quality.

Printing Section

1. Printing roller diameter Ø406 mm made of seamless steel tube, ground and dynamically balanced.
2. Plate cylinder made of hardened steel for precise registration.
3. Automatic locking and pneumatic lifting for easy plate change.
4. Multi-color registration precision up to ±0.2 mm.
5. Automatic ink circulation and cleaning systems.
6. Ink feeding uses diaphragm pumps for stability.
7. Doctor blade made of stainless steel for even ink distribution.
8. Anilox roller precision-ground, ceramic-coated, and dynamically balanced to HRC58–62.

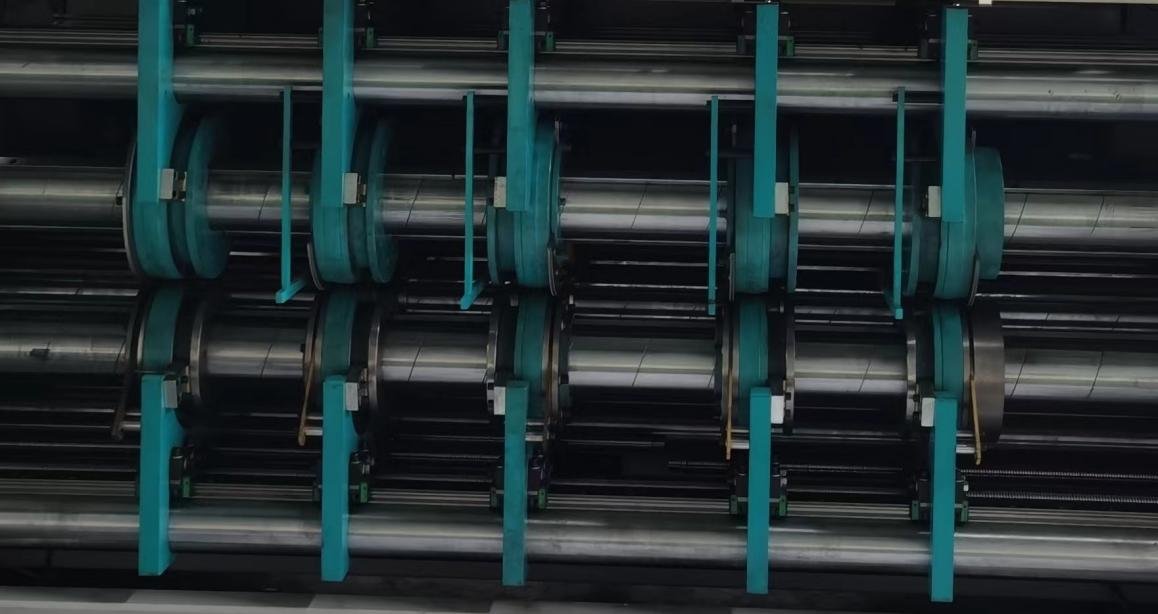

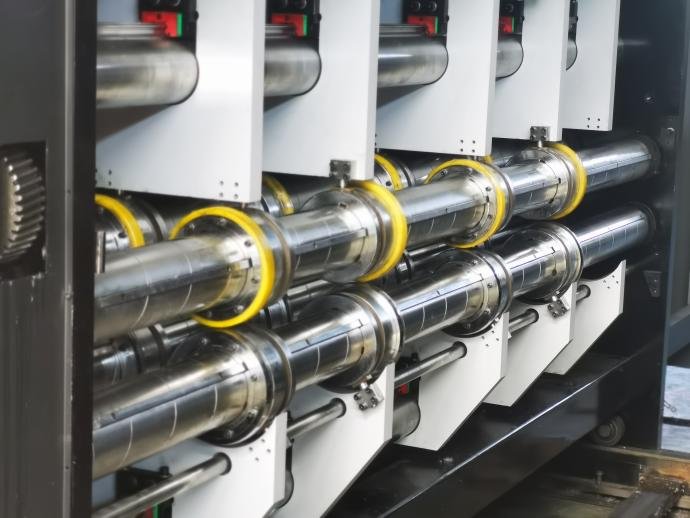

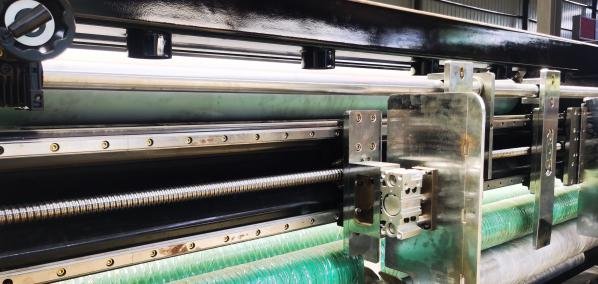

Slotting Section (Servo-Driven Knife Adjustment)

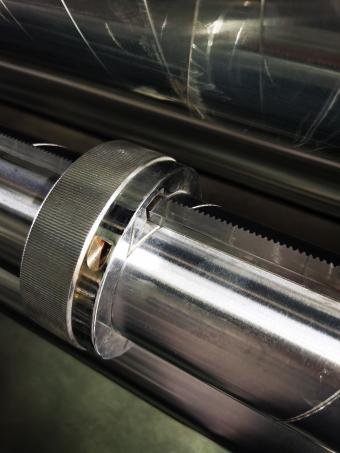

1. Creasing rollers and slotting shafts are precision-ground and hardened for smooth operation.
2. Upper rollers use high-quality imported rubber to prevent board damage.

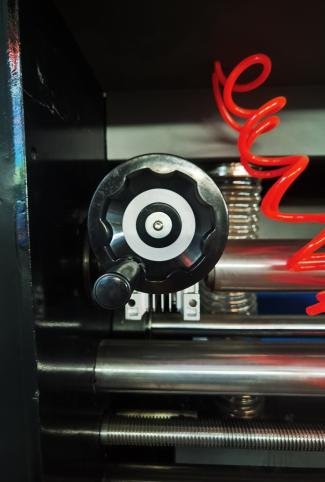

3. Slotting width adjustable by hand wheel (0–12 mm range).
4. Servo motor controls slotting and creasing synchronously for higher precision.
5. All adjustments are managed through the PLC interface with real-time position feedback.
6. Safety interlocks prevent incorrect operations.
7. New structure with twin gear synchronization and dual conveyor chains ensures smooth board transfer.

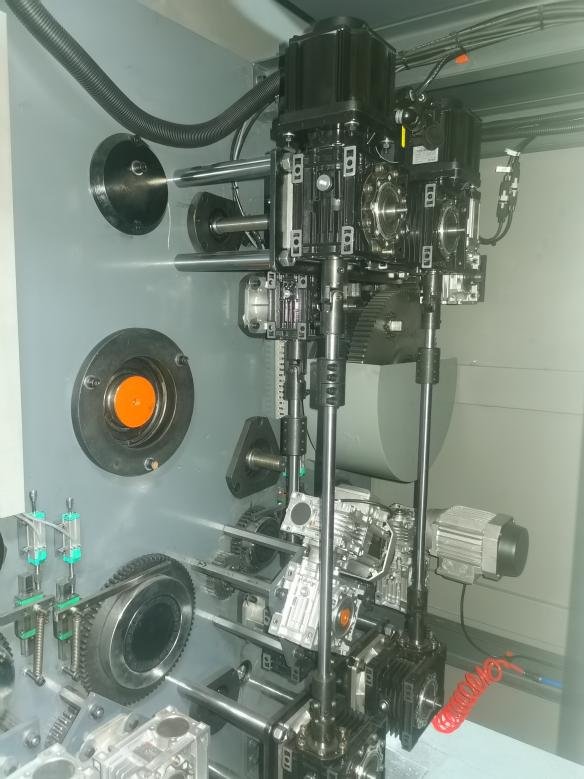

Transmission System

1. Main drive gears made of 20CrMnTi alloy steel, carburized, quenched, and ground for precision.
2. Six-grade precision operation with low noise and HRC58–62 hardness.
3. Keyless coupling connection avoids backlash and simplifies maintenance, ensuring long-term alignment accuracy.

Other Features

1. Main motor: variable frequency drive motor for adjustable speed control.
2. Bearings: NSK or equivalent high-quality brands (Japan).
