King of Individual Orders

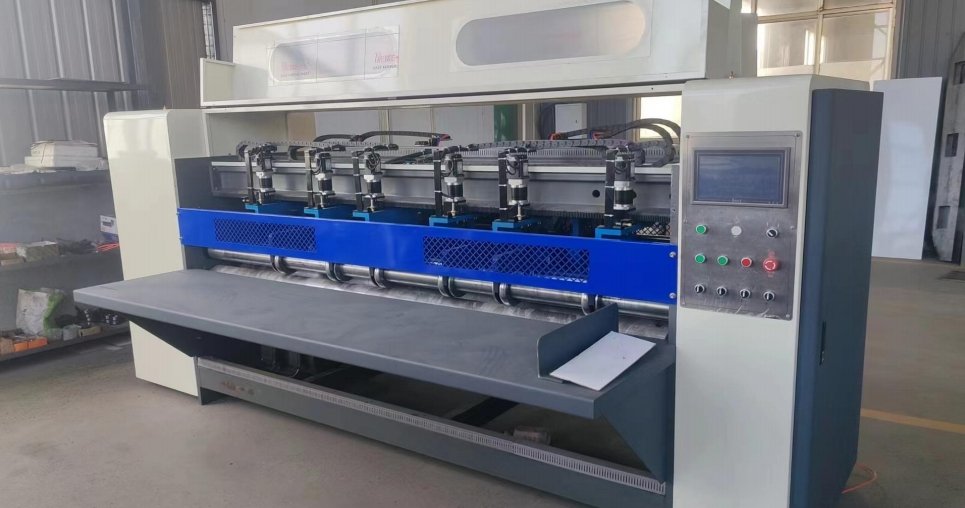

The SMBD‑CNC Series Automatic Slitting and Scoring Machine is a fully servo‑driven, PLC‑controlled system designed for high‑efficiency carton board cutting and scoring. Featuring 1–5 s order change, ± 0.5 mm precision, and automatic gap adjustment, it ensures stable, burr‑free cutting with tungsten steel blades. The humanized interface minimizes training needs, and with support for 999 order memories, it enables non‑stop production for large‑volume, high‑precision corrugated box manufacturing.
product details
Machine Advantages
- Minimum scoring distance: 30 × 100 mm
- Manual paper feeding available
- Linear guide rail sliding mechanism for smoother operation
- Electrically adjustable pressure gap
- Independent servo motor drive for rapid order switching — completes order change within 1–5 seconds

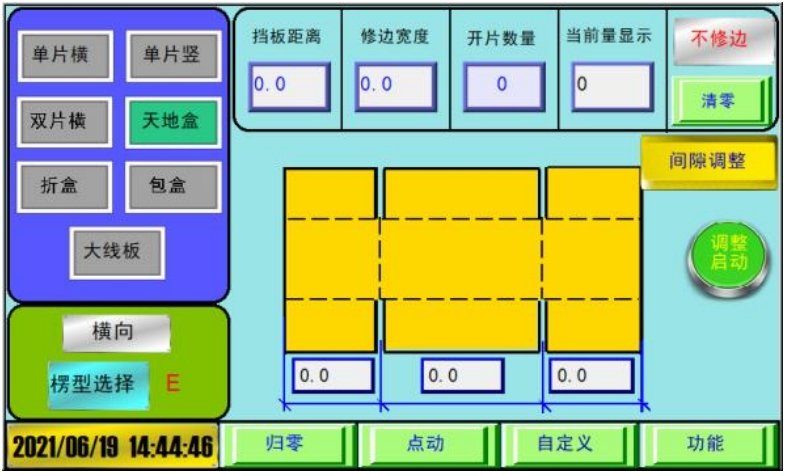

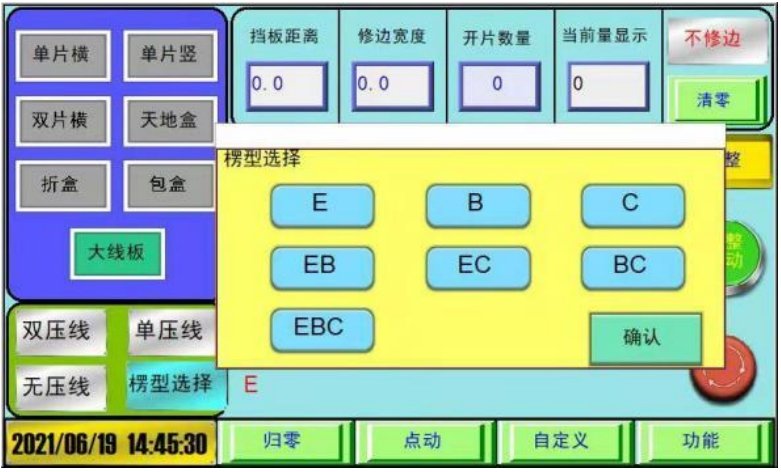

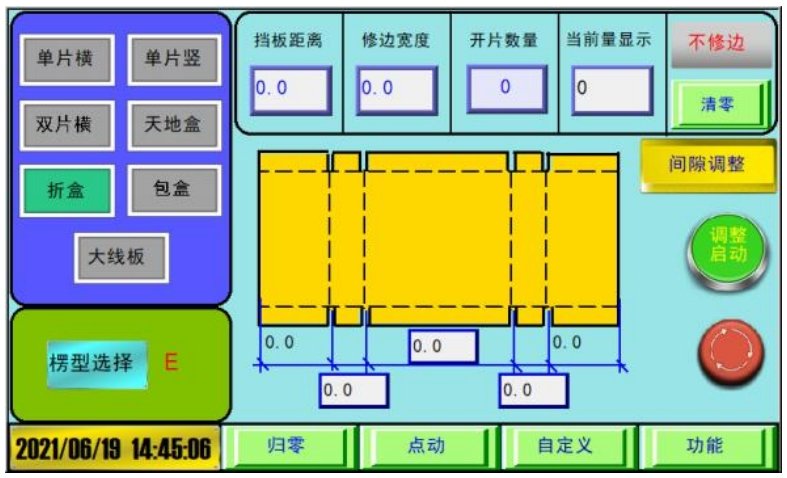

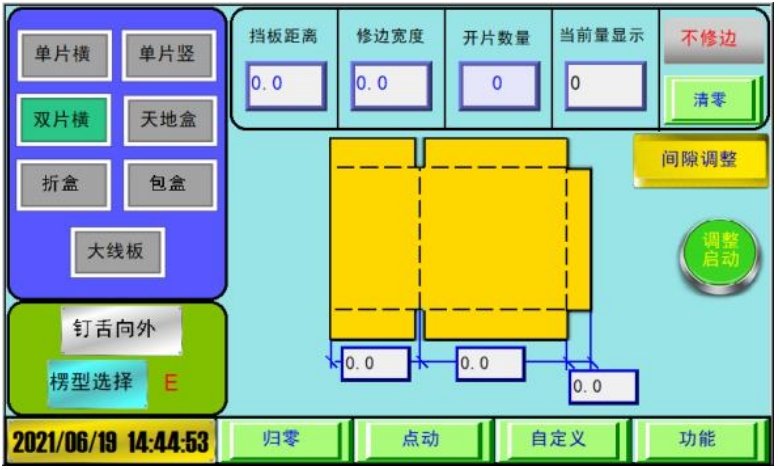

Sample Box Type Control Interface
Function Overview
The system adopts PLC control with human–machine interface, providing a user‑friendly robotic operation platform featuring simple structure, convenient use, and easy maintenance.
- Equipped with manual or automatic feeder
- Top roller, slitting blade, and scoring wheel are all independently adjustable
- Available with automatic / manual grinding knife
- Automatically adjusts cardboard thickness and press pressure
- Automatic lubrication system
- Automatic counting function
- Slitting and scoring precision ± 0.5 mm
- Independent stepper motors for each section ensure quick order changes — switching time 1–5 seconds.
- Humanized design—no technical difficulty for the operator, learning is fast.
- The blade section uses tungsten steel blades: sharp, durable, burr‑free, non‑pressing cutting edge.
- The machine can store up to 999 order settings; orders can be switched without stopping production.
Main Technical Parameters
| Model | SMBD‑CNC‑2750 | SMBD‑CNC‑3250 |
|---|---|---|
| No. of slitting/scoring blades | 4/6, 5/8, 6/10 | 4/6, 5/8, 6/10 |
| Max. production speed | 180 m/min | 180 m/min |
| Max. feeding width | 2500 mm | 3000 mm |
| Max. slitting width | 2100 mm (6‑blade) | 2600 mm (6‑blade) |
| Min. slitting width | 160 mm | 160 mm |
| Min. feeding length | 240 mm | 240 mm |
| Min. scoring distance | 30 × 100 mm | 30 × 100 mm |
| Gap adjustment | Automatic (optional) | Automatic |
| Main motor power | 23 kW | 25 kW |
| Dimensions (L×W×H) | 1900 × 3450 × 1800 mm | 1900 × 3950 × 1800 mm |
| Net weight | 4780 kg | 5080 kg |
Electrical Configuration
| Component | Brand | Origin |
|---|---|---|
| Touch screen | WEILUNTONG | Taiwan |
| PLC | Panasonic | Japan |
| Circuit breaker | Schneider | France |
| Electric relay | Schneider | France |
| Push button | Schneider | France |
| Main motor | Yongshun | Guangzhou, China |
| Actuator | Invt | China |
| Driving motor | Invt | China |
| Reducer | Yingkerun | China |
| Photosensor | Autonics | Korea |
| Proximity switch | Autonics | Korea |
| Air cylinder | Tianao | China |
| Frequency transformer | Mitsubishi | Japan |
| Bearing | HRB | China |
| Electromagnetic valve | Tianao | China |
