High-end Fully Automatic Carton Gluer

Machine Features

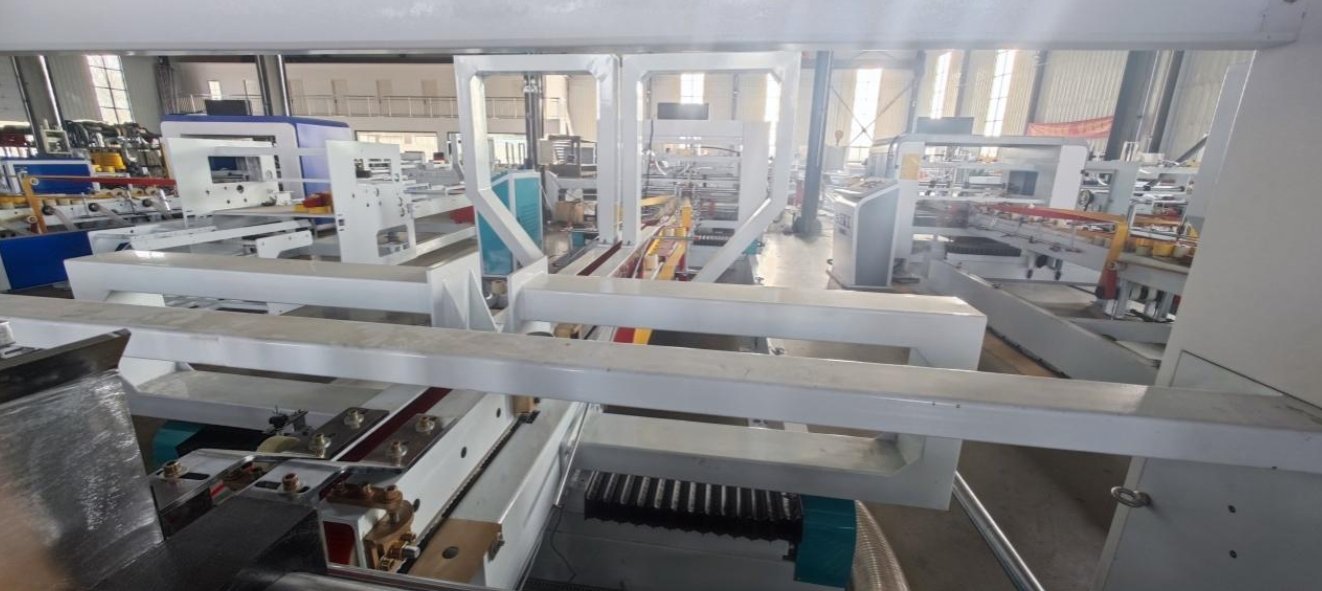

The fully automatic gluing and folding machine consists of the air-feeding section, gluing & folding section, and counting & stacking section.
Equipped with PLC control, double servo synchronization operation, it offers fast, convenient, and accurate control.
The machine features automatic gluing, folding, delivery, counting, and stacking with automatic correction and synchronous control.

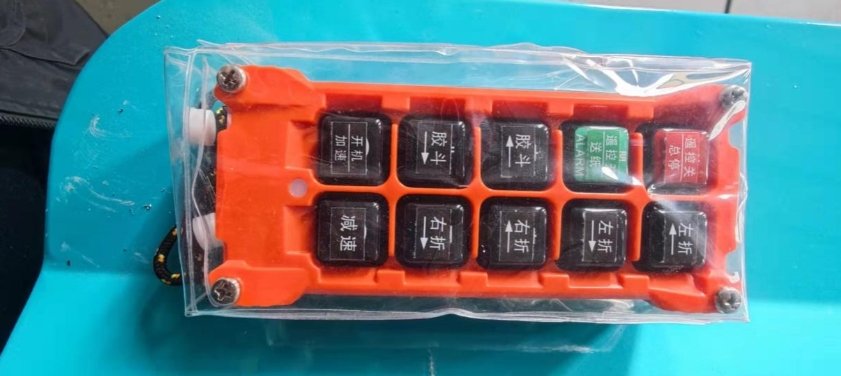

It uses a 100-meter remote controller for remote startup/stop, adjustment, and speed synchronization.
Max speed: 230 m/min, high production efficiency, and significant labor cost reduction.

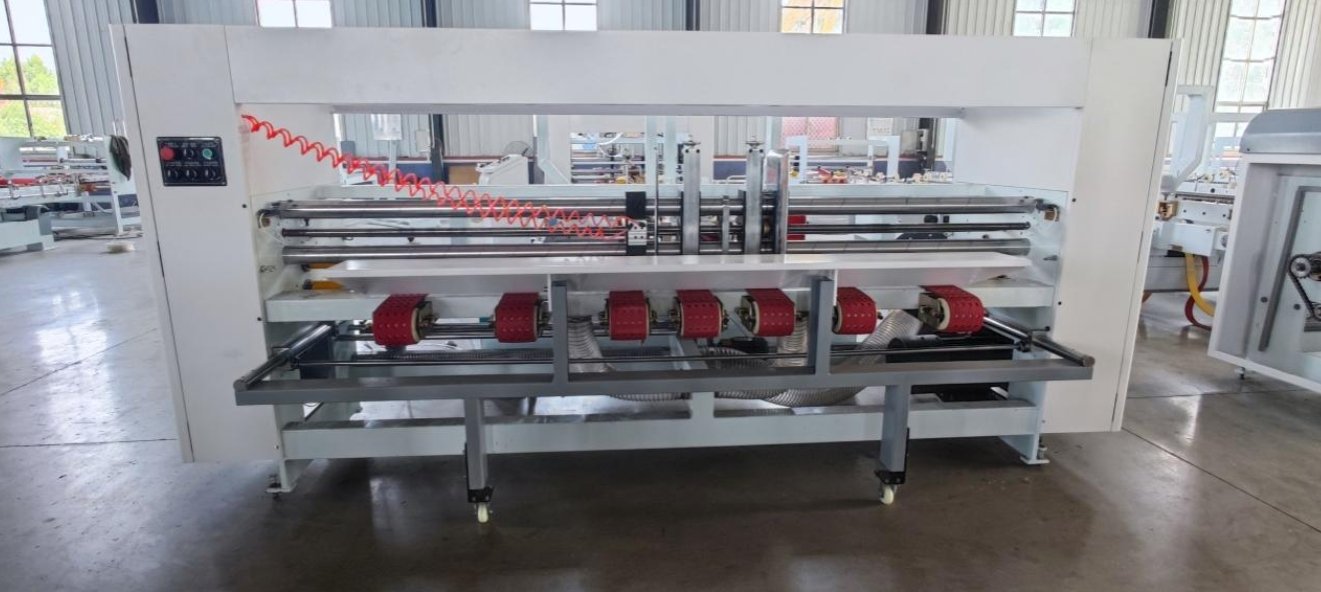

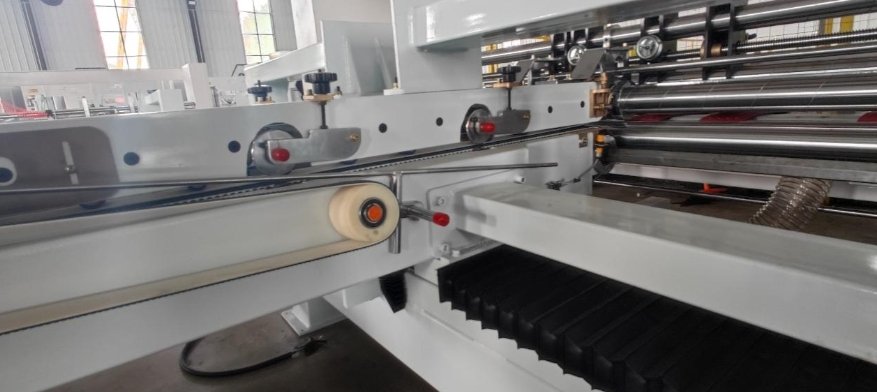

Feeding Section

1. Belt front-edge suction paper feeding, precise and reliable.
2. Uses electromagnetic clutch and brake system for independent control, simple and stable.
3. Works synchronously with the folding section; suitable cardboard thickness: 2–8 mm.
4. Feeding speed: 0–230 m/min, with adjustable vacuum for stable feeding.
5. Equipped with alignment and left-right paper belt adjustment.

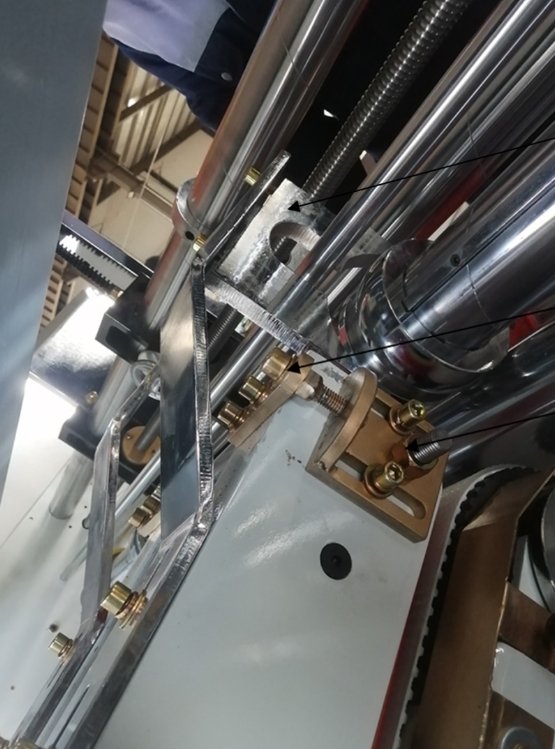

Gluing and Folding Section

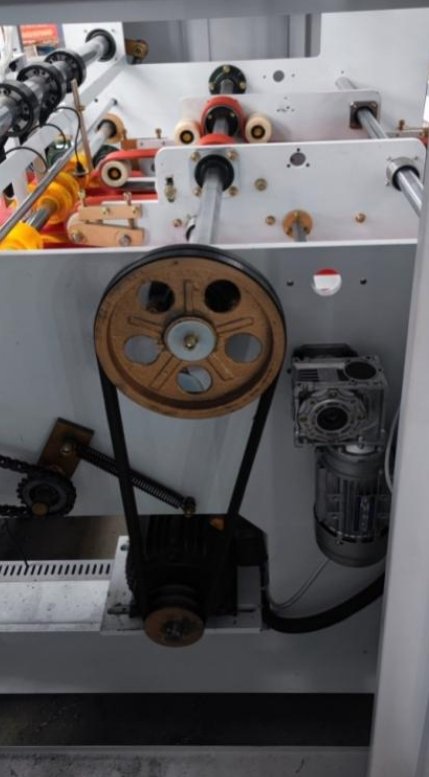

1. Main motor adopts variable frequency speed regulation, flexible and stable.

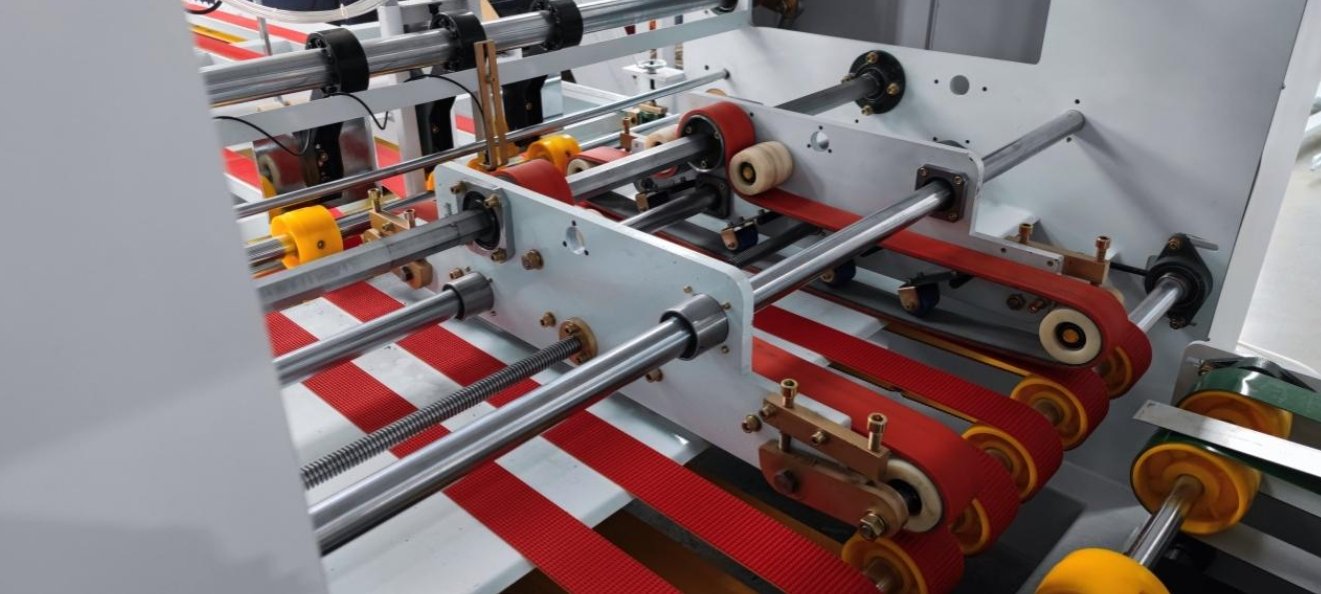

2. High-friction imported belts ensure smooth and non-slip conveying.
3. Stainless steel glue roller with precise gluing control, no splashing.

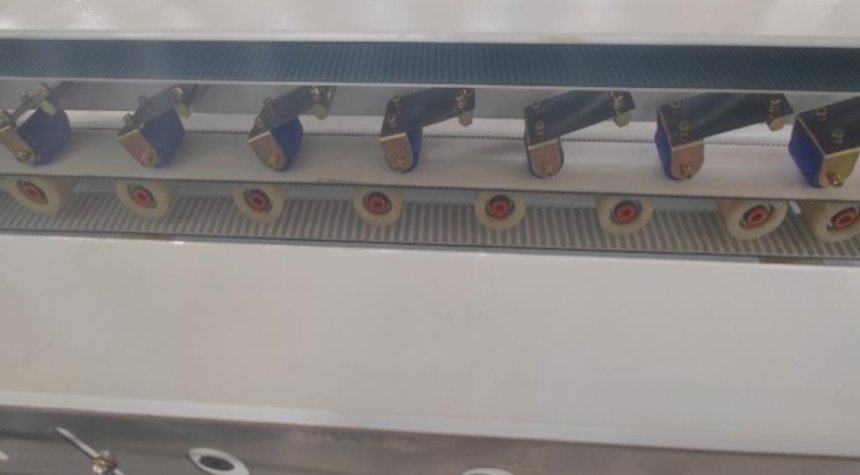

4. Equipped with cardboard alignment devices and pressing rollers for uniform folding.
5. Folding belt adjustable for fine-tuned accuracy.
6. Folding speed: 0–230 m/min.

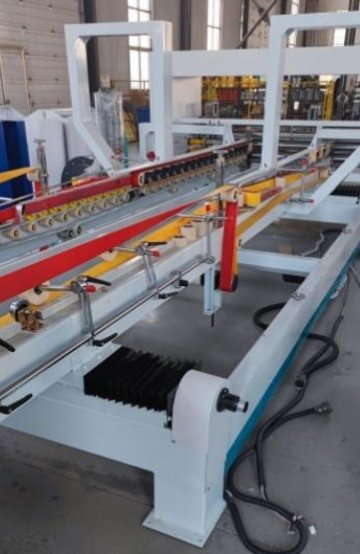

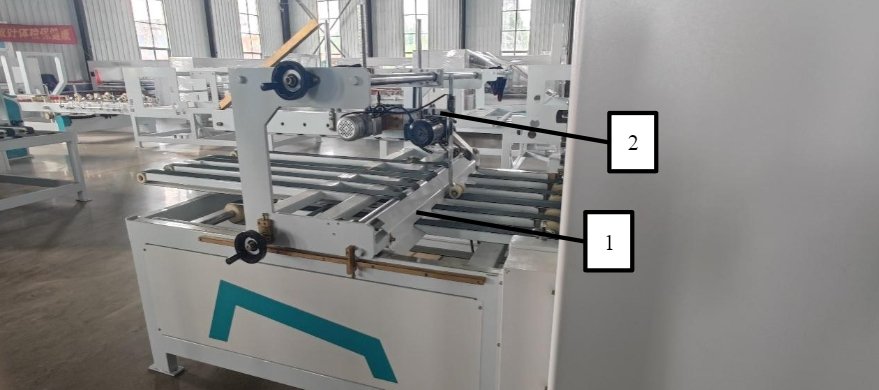

Counting and Stacking Section

1. Automatic counting and stacking output.
2. Frequency-controlled motor for smooth start/stop.
3. Belt conveying synchronization, stable up to 230 m/min.
4. Impact-resistant stacking belt design to avoid carton skewing.
5. PLC + servo control for high counting accuracy.
6. Remote operation within 100 m for start, stop, speed control, and left/right adjustment.
7. Independent gluing position and stacking synchronization ensure consistency.
8. Filter regulation avoids misalignment or angular deviation.

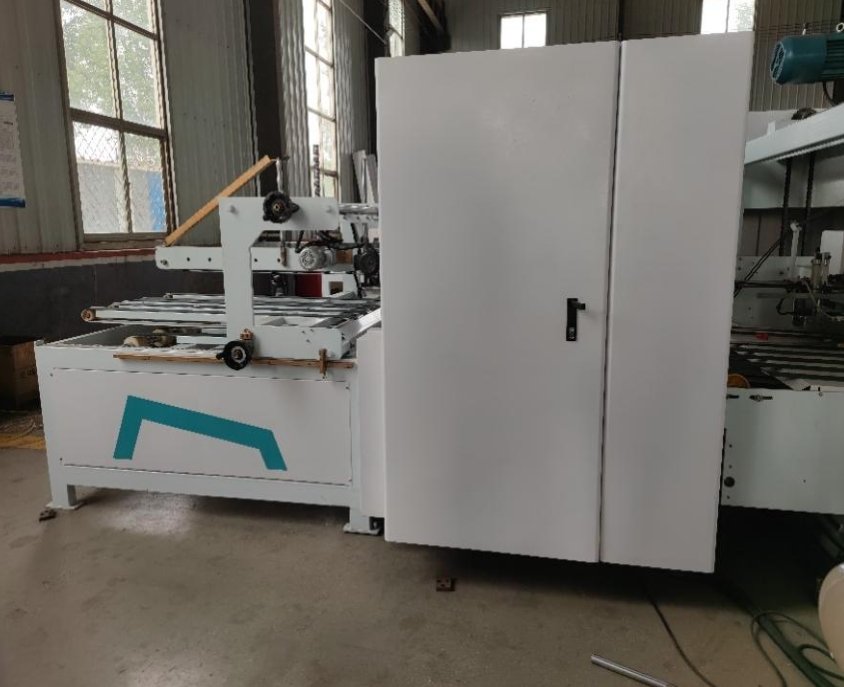

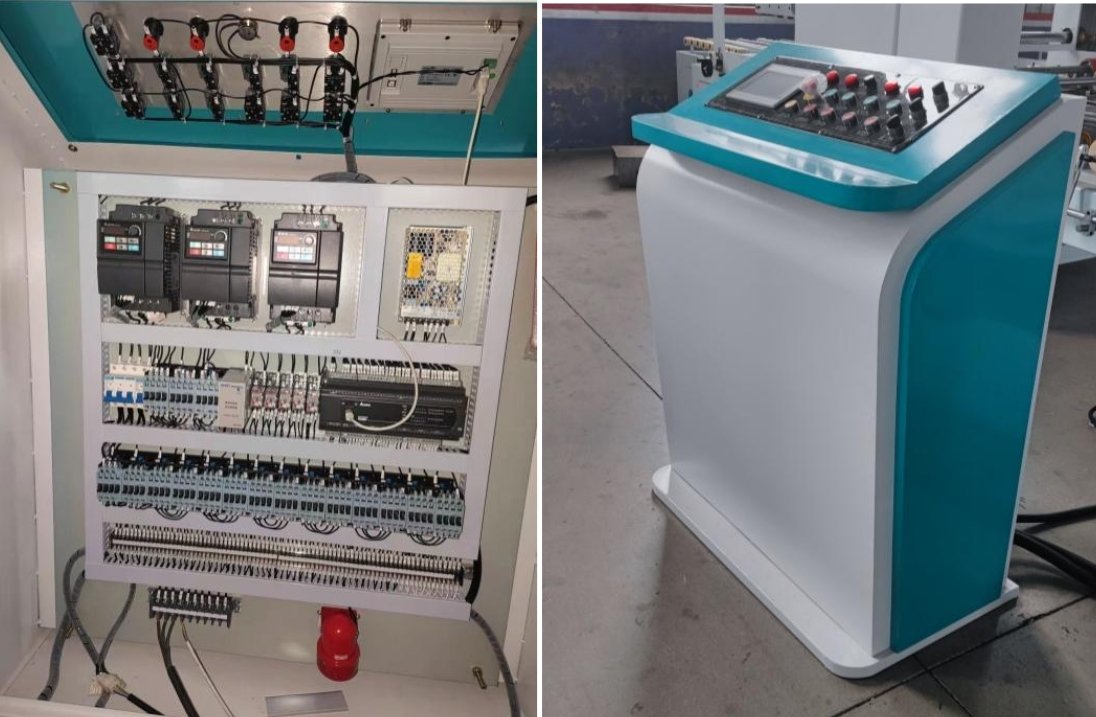

Electrical Control Cabinet

1. Ergonomic control platform, slanted design for comfort and aesthetic appearance.
2. Internal components laid out clearly, labeled for easy maintenance.
3. Uses international brands (Siemens, Delta, Schneider) for reliability.
4. Control cabinet with independent frequency inverter to ensure stable operation.
5. Integrated wiring ensures fast signal transmission and minimal interference.

Technical Parameters

Model: QZD‑2900

Configuration List:
PLC – Siemens,
Encoder – Delta,
Motor – Taiwan Dongyuan,
Inverter – Delta,
Screen – Weintek, etc.

Installation and Power Requirements

1. Required space: 15 × 4.2 × 3 m; wall clearance ≥ 1 m for operation.
2. Level ground required, ensure machine alignment.
3. Power supply: 380 V (440 V optional).
4. Check wiring diagrams before connection.

Operation Instructions

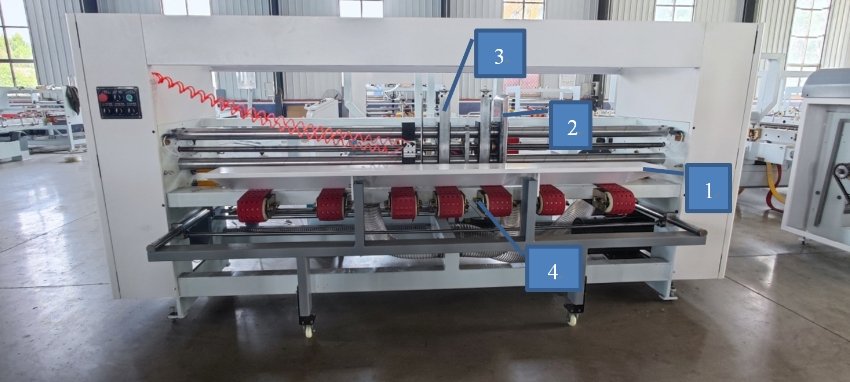

Paper Feeding Adjustment

1. Adjust board width, length, and thickness.
2. Adjust belt tension structure accordingly.
3. Keep deviation ≤ 0.5 mm for best folding accuracy.

Main Panel Usage

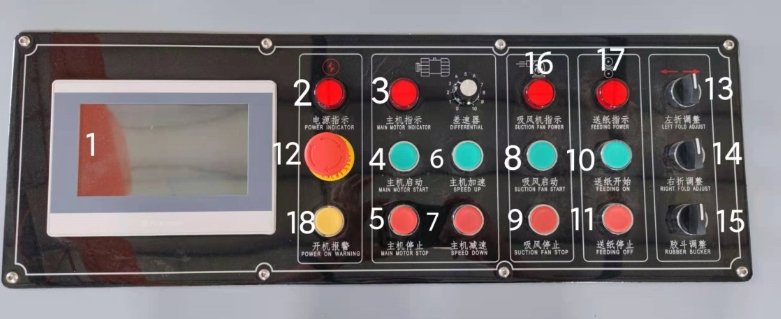

Simple touch control panel allows control of speed, production data, and feed timing.
Screen can set left/right alignment, feeding speed, and stacking quantity.

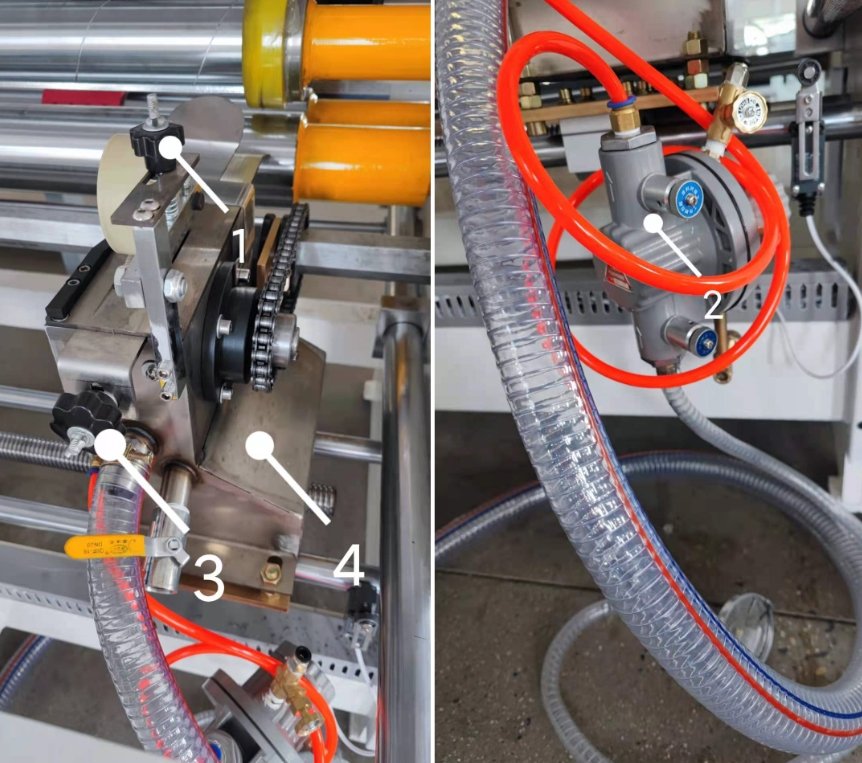

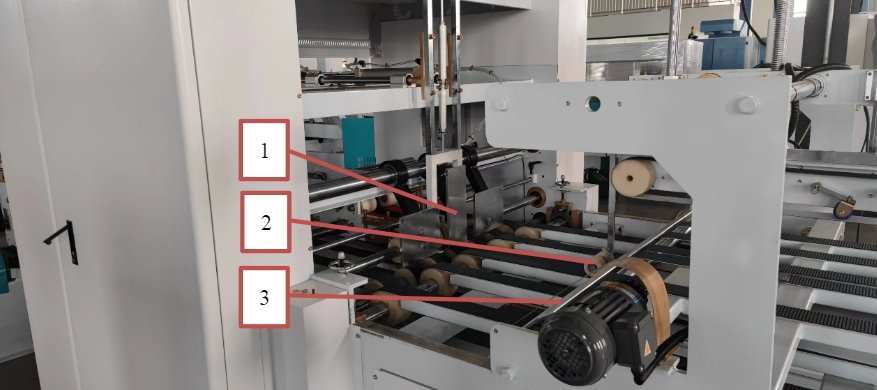

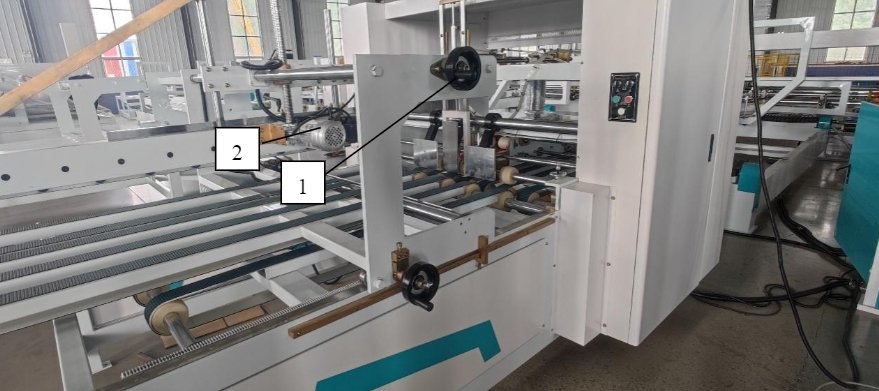

Gluing System Adjustments

1. Adjust upper roller height.
2. Control glue volume and circulation.
3. Ensure even coating and alignment with board edge.

Maintenance and Care

1. Regular lubrication for all bearings, gears, and moving parts.
2. Clean glue and dust residues regularly.
3. Maintain electrical components dry and dust-free.
4. Check tension and belts monthly.
5. Perform complete inspection every 6 months.
