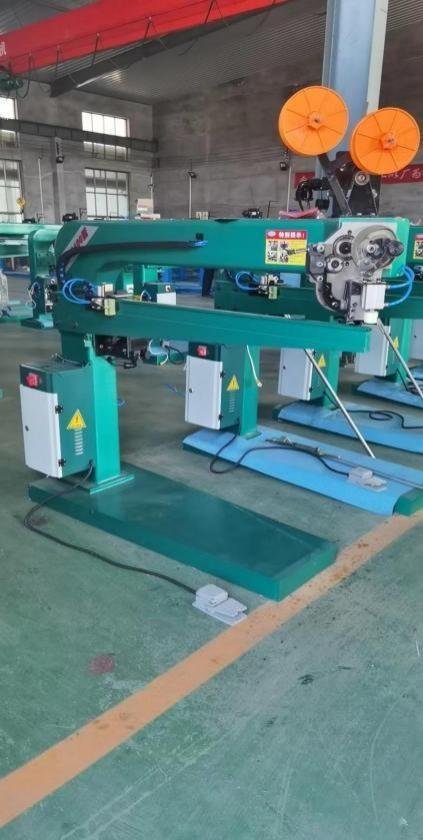

1200 Dual Servo Carton Stitcher
This high-performance servo-driven cutting and feeding system combines precise mechanical structure and smart electrical control for stable, high-speed operation.
The gear-driven cutter head ensures durability and long service life, while the servo-controlled feed system allows accurate positioning with minimal operator training.
Equipped with advanced electrical components (Taiwan Mingwei power supply, Hangzhou Yalong servo motor), it ensures efficiency, precision, and reliability in continuous corrugated cardboard processing.
product details
Mechanical Section
- The machine head adopts gear-driven rotation. The compact structure allows easy maintenance. The cutter head uses a special alloy material for durability and sharpness. The rotating shaft is connected with bearings to reduce wear and improve service life.
- The feeding unit is equipped with a servo motor for distance control, ensuring precision and requiring no advanced technical skills from operators.
- The operation height is 1.2 m; the feeding table height is 1.06 m.
- Production speed: 150 to 450 cuts per minute.
- Motor power: 3.0 kW.
- Power supply: two-phase 220 V.
- Mounting method: dual-knife configuration, 45° angle.
- Suitable board thickness: 3–5–7 ply corrugated cardboard.
Electrical Section
Assembly Specification – A01
| No. | Name | Specification/Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | Control box – External | Green-white | 1 | Set |
| 2 | Touchscreen (New 7-inch model) | TPC7022S | 1 | Set |
| 3 | Double-button switch (forward/reverse) | JDDC 7A6 7A6 HAPB1 | 1 | Set |
| 4 | Silicon rubber insulated wire (0.5 mm) | TKL005 | 1 | Roll |
| 5 | Perforated mounting plate | 20 × 35 | 1 | Sheet |
| 6 | Circuit breaker | NXB-63 2P 16A | 1 | Pc |
| 7 | Power supply (Taiwan Mingwei) | LRS-35-24 V | 1 | Pc |
| 8 | Relay | RFT2C0024L 24 VDC | 1 | Pc |
| 9 | Relay base | SRT08-E + SR20 52P | 2 | Pc |
| 10 | Terminal block | TB-2512 | 1 | Pc |
| 11 | DC wire set (0.5 m) | KZBJ005 | 1 | Set |
| 12 | Combined switch (Shanghai Yonghai) | — | 1 | Pc |
| R50 | Male plug – yellow | GHT-10L4 10A 250V | 1 | Pc |
| 45-2 | Grounding wire (1.5 m, white) | — | 1 | Pc |
Electrical Control Cabinet
| No. | Name | Specification/Model | Quantity | Unit |
|---|---|---|---|---|
| 1 | Dual-servo control cabinet (Tongda brand) | ZD-PDX-TD | 1 | Set |
| 2 | Servo motor (Hangzhou Yalong) | 130ST-100625 | 1 | Pc |
| 3 | Servo drive (Hangzhou Yalong) | BDH015/BDH030/BDH050 | 1 | Set |
| 4 | Servo communication cable 1.5 m | — | 1 | Set |
| 5 | Limit switch (Tai’an Zhiyu brand) | GAI8-18G1-HL 3.5 m | 1 | Pc |
| 6 | Proximity switch (Tai’an Zhiyu brand) | SH04-N | 1 | Pc |
Pneumatic and Safety Components
| No. | Name | Specification | Quantity | Unit |
|---|---|---|---|---|
| 1 | Giant brand solenoid valve | 4V210-08 220 V | 3 | Pc |
| 2 | Straight connector | PCB-02 | 1 | Pc |
| 3 | Silencer | 1 inch long | 2 | Pc |
